Solar Well Pumps Manufacturer & Supplier
Looking to Expand Your Solar Borehole Pump Offerings? Discover Your Ultimate Wholesale Guide Here!
Why choose CYLSUN Solar Well Pumps
CYLSUN is a leading manufacturer and supplier of DC Solar Borehole Pumps, offering a range of high-speed, efficient solar water pumps. Our factory in China is equipped with state-of-the-art technology, ensuring the production of pumps that excel in both performance and reliability for high-demand industrial applications.
At CYLSUN, we specialize in providing solar pumps that are tailored for diverse uses. Our product range includes pumps designed specifically for agricultural irrigation, rural water supply, and commercial applications like swimming pools and recreational facilities. Each pump is a testament to our commitment to quality and innovation.
The unique feature of CYLSUN pumps is their high-speed operation, crucial for efficient water management in various settings. Whether it’s for farming, livestock watering, or commercial use, our pumps deliver exceptional performance under pressure.
The advantages of choosing CYLSUN for your solar water pump needs include reliability, energy efficiency, and ease of operation with minimal maintenance requirements. Our dedication to quality control and customer support ensures that you receive not just a product, but a comprehensive water management solution.
Advantages of CYKSUN DC Solar Borehole Pumps:

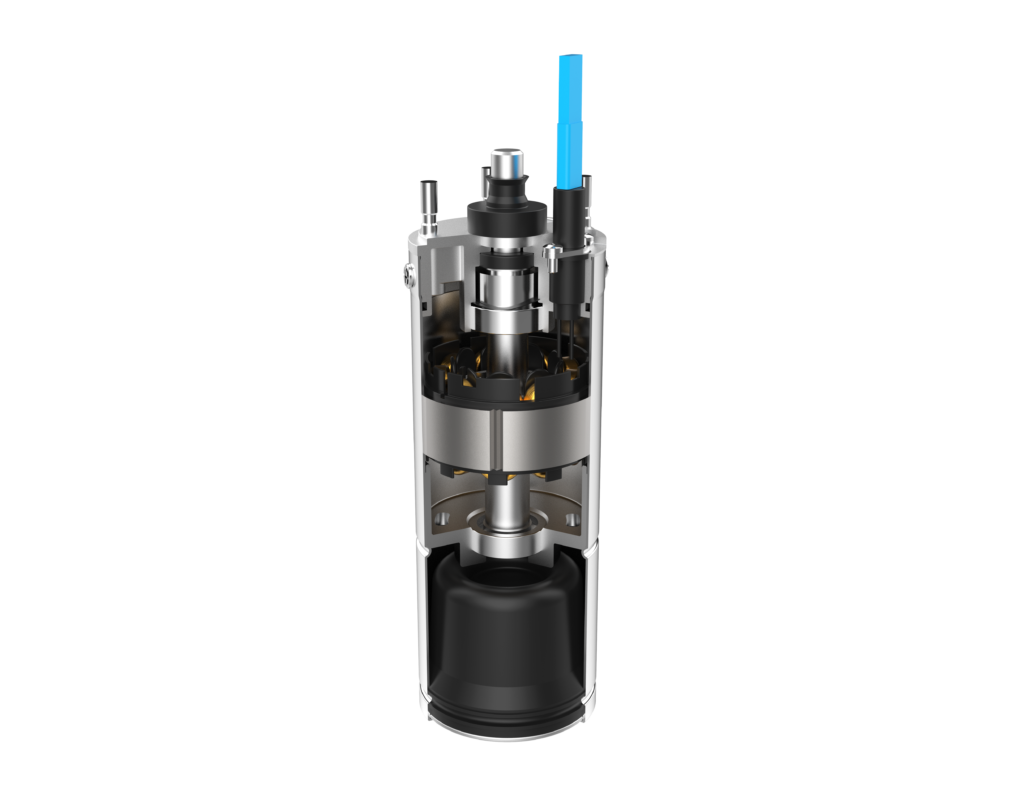

Advanced Motor Technology: Our pumps are equipped with a permanent magnet DC brushless synchronous motor, boosting efficiency by 15%-20%. This innovation not only saves energy but also reduces the need for extensive solar panel systems.
Durable Rotor Shaft: Crafted entirely from 304 stainless steel, our rotor shafts are designed to eliminate the risk of breakage, ensuring long-lasting performance.
Premium Build Quality: We use high-quality materials such as 304 stainless steel or copper for the pump’s outlet, connection, and cylinder, guaranteeing durability and reliability.
Superior Bearings: Incorporating Japanese brand NSK bearings, our pumps promise an extended working life. The double bearing structure at the bottom of the rotor, featuring angular contact bearings, can withstand significant axial pressure.
Advanced Mechanical Seal: The use of silicon carbide to impregnated graphite in the mechanical seal enhances the pump’s working life and ensures high reliability.
High-Grade Enameled Wire: Our pumps feature enameled wires made from 180℃ high-temperature resistant copper, with an insulation grade of F, for optimal durability and efficiency.
Optimized Stator and Rotor Design: The stator and rotor are made from cold-rolled 600 silicon steel sheet, providing a robust and efficient structure.
High-Quality Magnet Material: Utilizing 40SH aluminum iron boron material for the magnet, our pumps are capable of withstanding temperatures up to 150℃, ensuring performance under various environmental conditions.

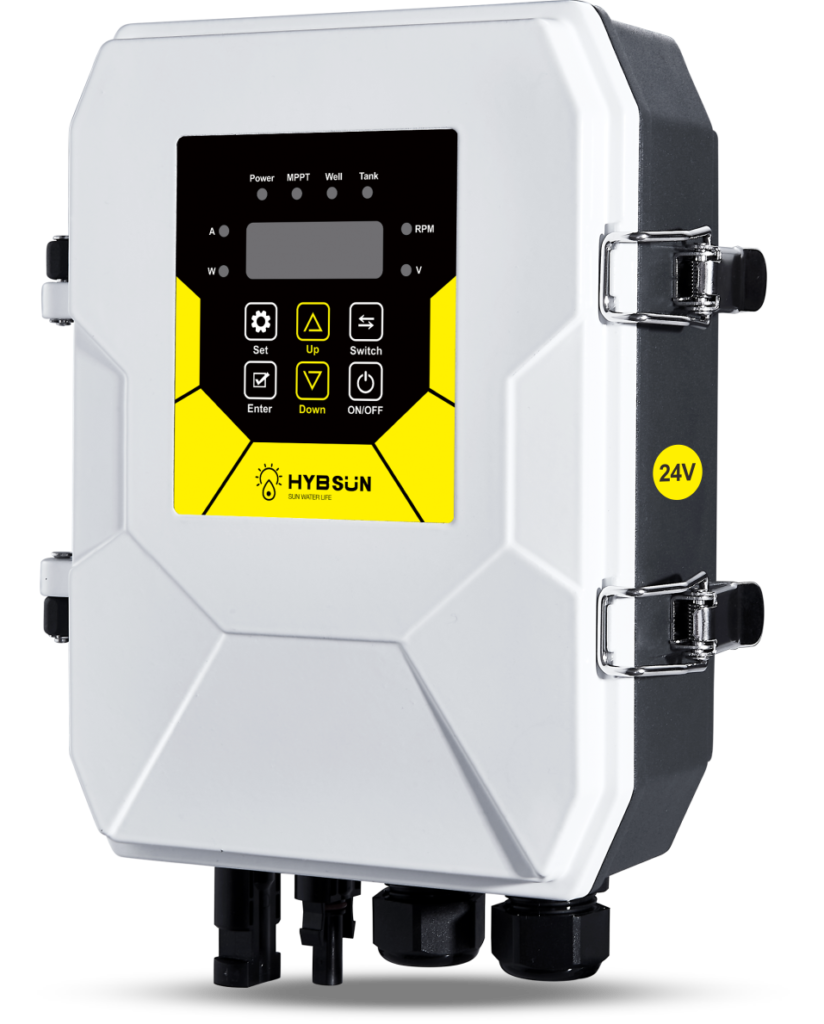

Advantages Of The Pump Controller
Robust Waterproof Design: Our controllers are designed with an IP65 waterproof grade, ensuring reliable performance in diverse environmental conditions.
Flexible Voltage Range: They feature a wide open circuit voltage range, accommodating various power supply scenarios.
Adaptable to Extreme Temperatures: Engineered to operate efficiently in ambient temperatures ranging from -15℃ to 60℃, our controllers are built for resilience.
High Maximum Input Current: With a maximum input current of 17A, these controllers can handle substantial power flows, ensuring steady operation.
Enhanced MPPT Function: The inclusion of the Maximum Power Point Tracking (MPPT) function allows for higher solar power utilization, optimizing energy efficiency.
Informative LED Display: Key operational metrics such as power, voltage, current, and speed are easily monitored through a user-friendly LED display.
Intelligent Speed Adjustment: The controllers automatically adjust the pump speed based on solar power availability, or allow manual adjustment to suit specific demands.
Automated Operation: Designed for ease of use, they automatically start and stop without the need for manual intervention.
Soft Start Feature: This function ensures there is no impulse current, providing additional protection for the pump motor.
Comprehensive Protection Functions: Our controllers are equipped with multiple safety features, including overvoltage, undervoltage, overcurrent, phase loss, short circuit, water shortage, and high-temperature protection, ensuring the longevity and safety of your pumping system.
。
Solar Well Pumps By Material
While there is a limitless number of materials to make Solar Borehole Pumps , one can narrow down the most common into two.

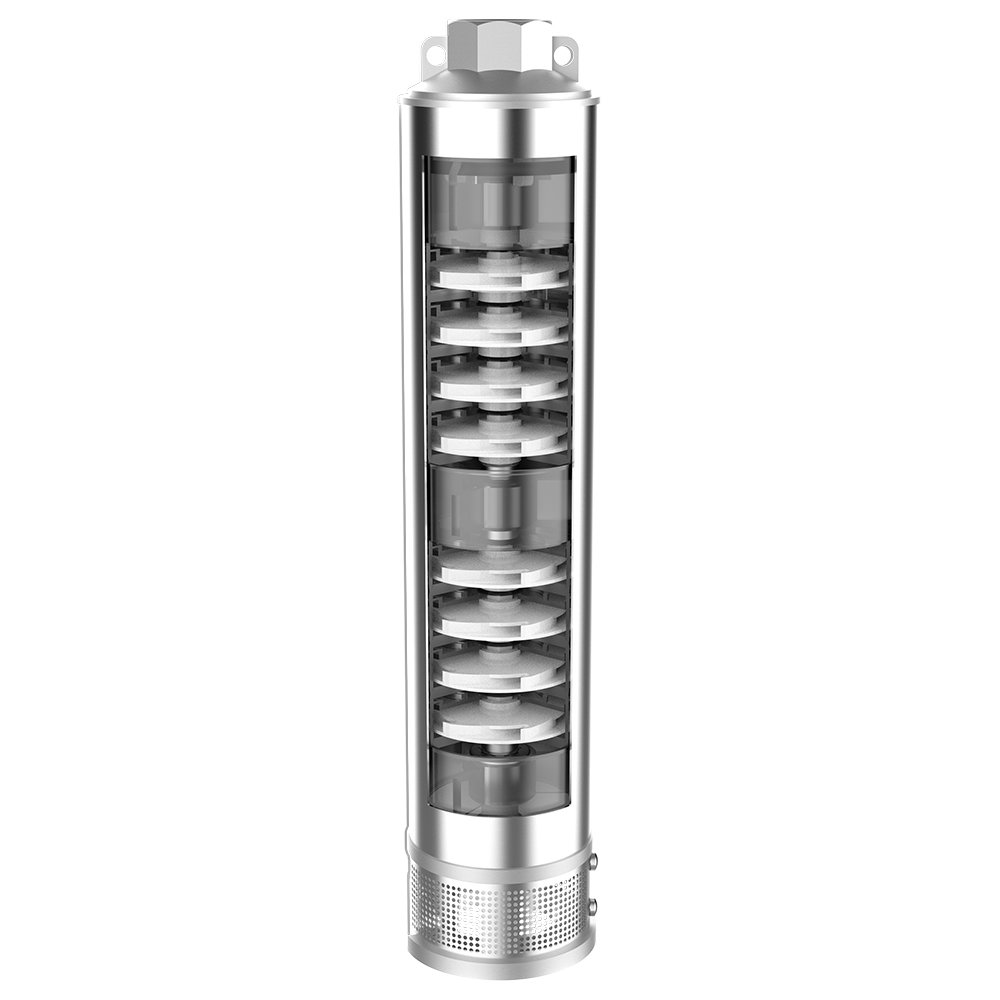

CYLSUN’s solar water pumps feature advanced plastic impellers, a game-changer in cost-efficiency and performance. These impellers are incredibly lightweight, reducing the load on the motor and enhancing energy efficiency. Their plastic construction offers significant cost advantages over traditional materials, without compromising on durability or functionality. Resistant to corrosion and wear, these impellers maintain optimal performance in various water conditions, extending the pump’s lifespan.

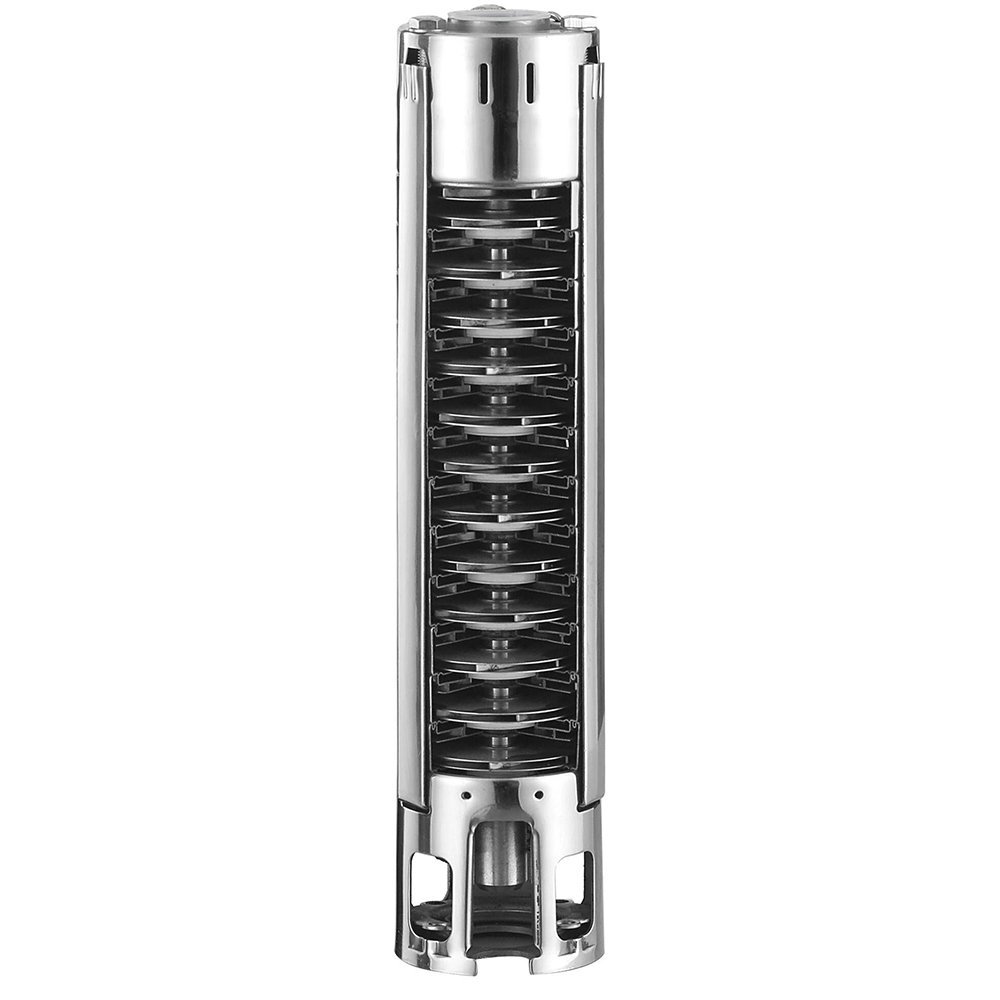

HYBSUN’s solar water pumps are equipped with stainless steel impellers, combining longevity with cost-effectiveness. These impellers boast exceptional strength and resistance to corrosion, making them ideal for diverse water conditions. Their stainless steel construction ensures durability, reducing the need for frequent replacements and lowering long-term costs. Engineered for efficiency, they provide consistent, high-performance operation, crucial for applications like agricultural irrigation and commercial water supply.
Things you Need to Know
To save you from worries, here are some facts you need to know about our Solar Borehole Pumps supplies:
How long does it take for me to receive the goods I ordered?
If it is a sample, we usually only need 1 week, if it is wholesale, it usually takes 4 weeks
Can you replace products that are damaged during delivery?
Although we ensure top-notch safety for all our orders, mishaps do happen. When they do, please contact customer support on our site. They’ll advise you accordingly.
Can I customize a solar water pump?
Yes, please let me know your height and required flow. If you want to customize the water pump, please contact us through our email!
How long is your warranty?
Our warranty is 3 years.
